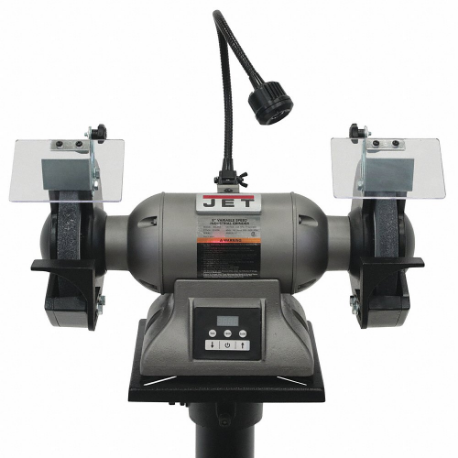

JET TOOLS 578208 IBG-8VS Bench Grinder
Get it by Friday, Jun 20
€712.79 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 20
Payment
| Item | Bench Grinder |
| Amps | 11/5.5A |
| Application | Grinding |
| Arbor Size | 5/8" |
| Bearing Type | Ball Bearing |
| Cord Length | 6 ft. |
| Dust Collection Port Size | 2 1/2" |
| Dust Management | Dust Management Included |
| Features | Adjustable Cast Iron Tool Rests, Brake Resistor For Rapid Wheel Stoppage, Cast Iron Wheel Guards, Rubber Mounts, Variable Speed For Wide RPM Range |
| For Max. Wheel Dia. | 8" |
| For Max. Wheel Thickness | 1" |
| Frequency | 60 Hz |
| Grinding Wheel Grit | 36/60 |
| Housing Material | Cast Iron |
| Includes | (2) Grinding Wheels, Adjustable Tool Rests, Large Eye Safety Shields, Single Outlet Collection Hose, Wheel Dresser, Wheel Guards |
| Lights Included | No |
| Max. Wheel Speed | 3600 RPM |
| Min. Wheel Speed | 900 RPM |
| Overall Height | 9.453" |
| Overall Length | 23.422" |
| Overall Width | 22 1/2" |
| Phase | 1 |
| Sound Level | 75dB @ 3 ft. |
| Speed Setting | Variable Speed |
| Switch Type | Tact |
| Voltage | 115V |
| Wheel Distance | 18" |
| Arbor Diameter | 5/8" |
| Base Footprint - Depth | 8 1/16" |
| Base Footprint - Width | 9 1/2" |
| Base Material | Cast Iron |
| Current | 3.5/7A |
| Dust Exhaust Port Size | 2 1/2" |
| Extraction Volume - Minimum | 350 CFM |
| For Wheel Diameter - Maximum | 8" |
| For Wheel Thickness - Maximum | 1" |
| Horsepower | 1 hp |
| Includes Dust Management | Dust Management Included |
| Includes Lights | Light Not Included |
| Motor Housing Material | Cast Iron |
| Motor Speed - Maximum | 3600 RPM |
| Motor Speed - Minimum | 900 RPM |
| Mounting Holes - Diameter | 7/16" |
| Number Of Speed Settings | Variable |
| Power Cord - Nema Plug Configuration | NEMA 5-15P |
| Power Cord Length | 6 ft. |
| Standards | CSA/CUS CERTIFIED |
| Tool Rest Material | Cast Iron |
| Tool Weight | 66 lbs. |
| Wheel Diameter | 8" |
| Wheel Flange Diameter | 3 3/8" |
| Wheel Material | Aluminum Oxide |
| Wheel-to-wheel Distance | 8 1/2" |
| Ship weight (kg) | 32.15 |
| Ship height (cm) | 24.01 |
| Ship length (cm) | 59.49 |
| Ship width (cm) | 57.15 |
| Country of Origin | TW |
