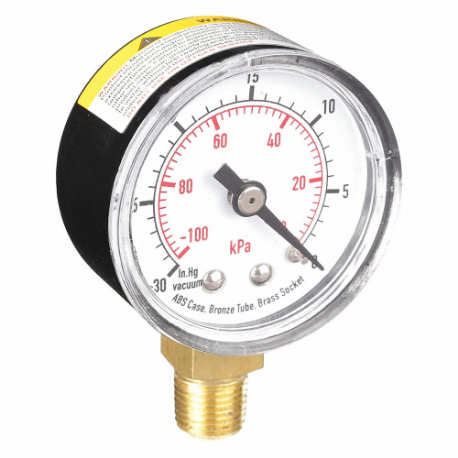

| Item | Vacuum Gauge |
| Accuracy | ±3-2-3% |
| Accuracy Scale | Mid Scale |
| Ambient Temp. Range | -40°F to +150°F |
| Application | General-Purpose Case , Test And Measurement |
| Bezel Material | Stainless Steel |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Cleaned For Oxygen Service | No |
| Dial Color | White |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Gauge Case Liquid | None |
| Gauge Wetted Parts | Brass, Bronze |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Liquid-filled Case | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 1 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Pressure Range | 0 in. hg to 30 in. hg |
| Pressure Range Type | Vacuum |
| Primary Scale Minor Graduations | 1, 2 |
| Primary Scale Units | in. hg |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/8" |
| Process Connection Type | NPT |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | -100 kPa to 0 kPa |
| Secondary Range | -100 kPa to 0 kPa |
| Secondary Scale Units | Kpa |
| Sensor Material | Bronze |
| Socket Material | Brass |
| Vibration Resistance | None |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Case Material | Plastic |
| Freeze Resistant Movement | No |
| Gauge Application | General Purpose Case |
| Gauge Case Material | ABS Plastic |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Ip/nema Rating | Not Rated |
| Lens Material | Acrylic |
| Lens Material - Gauge | Plastic |
| Primary Graduations | 1, 2 |
| Primary Pressure Range | 0 to 30 |
| Process Connection | 1/8" NPT Male |
| Wetted Parts Material | Brass, Bronze |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
