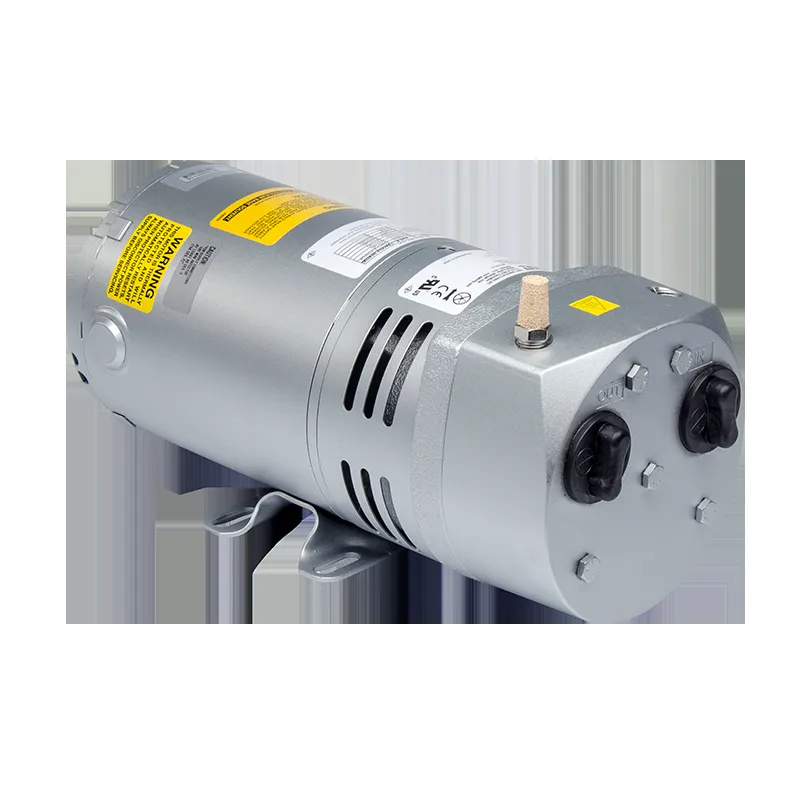

| Item | Vacuum Pump |
| Duty Cycle | Continuous |
| Environment | Laboratory Environment, Medical Environment |
| Fluid Compatibility | Air |
| Free Air Flow Rate | 4/4.5 CFM |
| Frequency | 50/60 Hz |
| Includes | Internal Muffler And Filter, Silencer: AK840, Thermal Protector (Single Phase Units Only) |
| Inlet Size | 1/4" |
| Max. Continuous Pressure | 10 psi |
| Max. Operating Temp. | 104°F |
| Max. Speed | 1725 RPM |
| Max. Vacuum | 26 in. hg |
| Min. Operating Temp. | 33.8°F |
| Overall Height | 6 9/25" |
| Overall Length | 14 3/25" |
| Overall Width | 5.63" |
| Power Output | 1/4 hp |
| Power Source | Corded Electric |
| Sound Level | 70 dBA |
| Thermal Protection | Yes |
| Voltage | 110/220-240/115/220-230V |
| Wattage | 0.18 W |
| Compressor/pump Enclosure Material | Grey Iron |
| Current Rating | 2.5A |
| Filter Element Material | Polypropylene |
| Housing Material | Grey Iron |
| Inlet Gender | Female |
| Inlet Type | NPT |
| Insulation Class | Class B |
| Life Expectancy | 4000 hrs. |
| Lubrication Type | No Oil |
| Maximum Continuous Pressure | 10 psi |
| Maximum Intermittent Pressure | 10 psi |
| Maximum Operating Temperature | 104°F |
| Maximum Pressure | 10 psi |
| Maximum Speed | 1725 RPM |
| Maximum Vacuum | 26 in. hg |
| Minimum Operating Temperature | 33.8°F |
| Outlet Gender | Female |
| Outlet Size | 1/4" |
| Outlet Type | NPT |
| Output Power | 1/4 hp |
| Phase | Single |
| Pump Type | Rotary Vane |
| Series | Gast Series |
| Standards | CE, CURUS, UKCA |
| Weight | 32 lbs. |
| Ship weight (kg) | 14.37 |
| Ship height (cm) | 41.59 |
| Ship length (cm) | 39.05 |
| Ship width (cm) | 44.13 |
