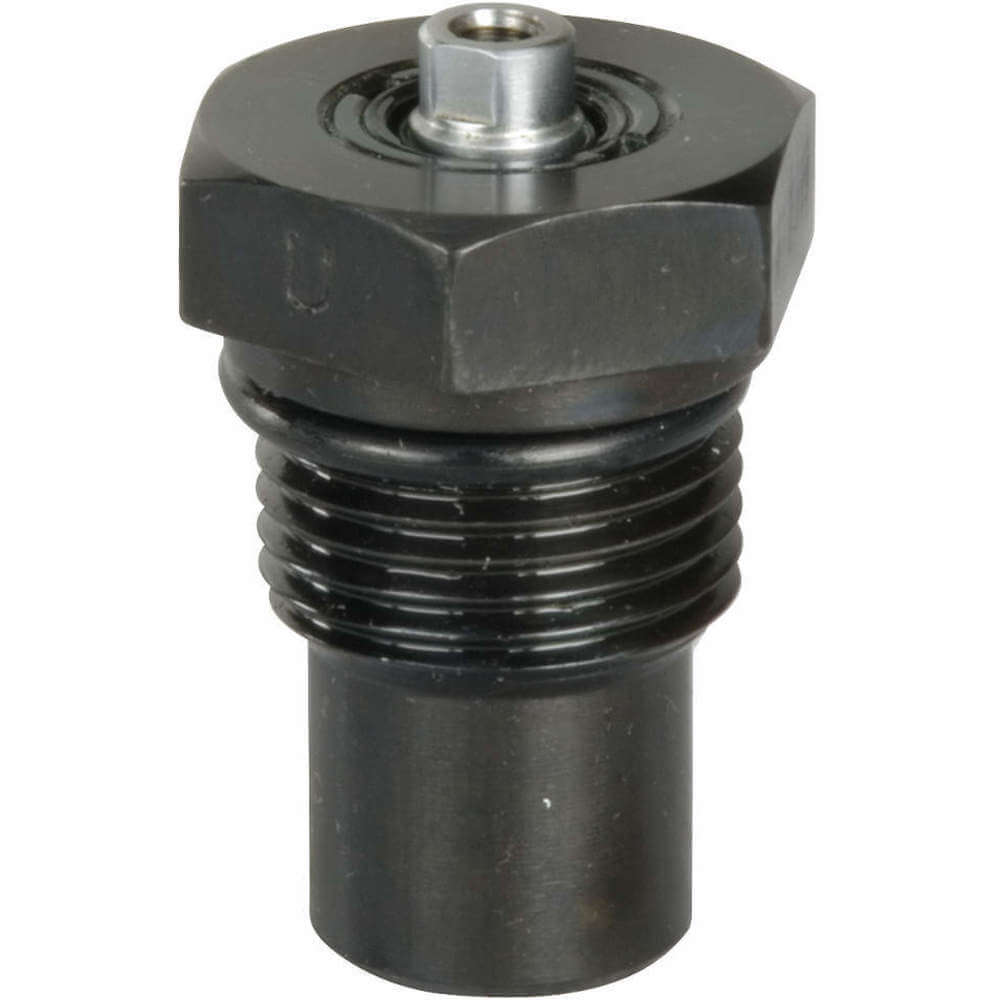

ENERPAC CSM571 Cylinder Threaded 1190 Lb 0.28 Inch Stroke
Get it by Friday, Jun 20
€158.40 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 20
Payment
| Item | Hydraulic Cylinder |
| Dimension A | 2.02" |
| Dimension C | 1.57" |
| Dimension D1 | 0.69" |
| Dimension E | 0.31" |
| Dimension E1 | 0.27" |
| Dimension F | 1.06" |
| Dimension F1 | 1/4" |
| Dimension J | 0.55" |
| Dimension K | #8-32 |
| Dimension P | 4/25" |
| Dimension T | 7/25" |
| Function | Single Acting |
| Material | Steel |
| Max. Cylinder Capacity Advance | 1190 lbs. |
| Max. Operating Pressure | 5000 psi |
| Plunger Type | Solid |
| Pressure Range | 580 psi to 5000 psi |
| Seal Material | Buna N, Polyurethane |
| Stroke | 7/25" |
| Type | Threaded Body |
| Body Material | Steel |
| Body Thread | 7/8"-14 |
| Cylinder Type | Threaded Body |
| Effective Push Area | 0.24 sq. in. |
| Extended Height | 1.78" |
| Min. Hole Depth | 1.3" |
| Mounting Style | Manifold Mount |
| Oil Capacity Push | 0.07 cu. in. |
| Plunger Thread Size | #8-32 |
| Push Capacity @ 5000 Psi | 1190 lbf. |
| Retracted Height | 1.74" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 1/4" |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 12.19 |
| HS code | 8412210030 |
| Country of Origin | US |
| Product | Model | Cylinder Effective Area Advance | Dimension A | Dimension B | Dimension C | Dimension C1 | Dimension D | Dimension D1 | Dimension E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CSM271 | 0.08 sq. in. | 1.61" | 1.33" | - | 0.91" | 4/7"-18 UN | 0.47" | 0.19" | €139.59 | |
 |
CSM2131 | 0.08 sq. in. | 2.22" | 1.71" | - | 1.4" | 4/7"-18 UN | 0.47" | 0.19" | €146.52 | |
 |
CSM5131 | 0.24 sq. in. | 2.58" | 2.07" | 1.91" | 1.48" | 7/8"-14 UN | 0.69" | 0.31" | €207.90 | |
 |
CSM1071 | 0.5 sq. in. | 2.15" | 1.87" | 1.65" | 1.14" | 1"-12 UN | 0.94" | 0.47" | €262.35 | |
 |
CSM10131 | 0.5 sq. in. | 2.56" | 2.14" | 1.89" | 1.38" | 1"-12 UN | 0.94" | 0.47" | €191.07 |
