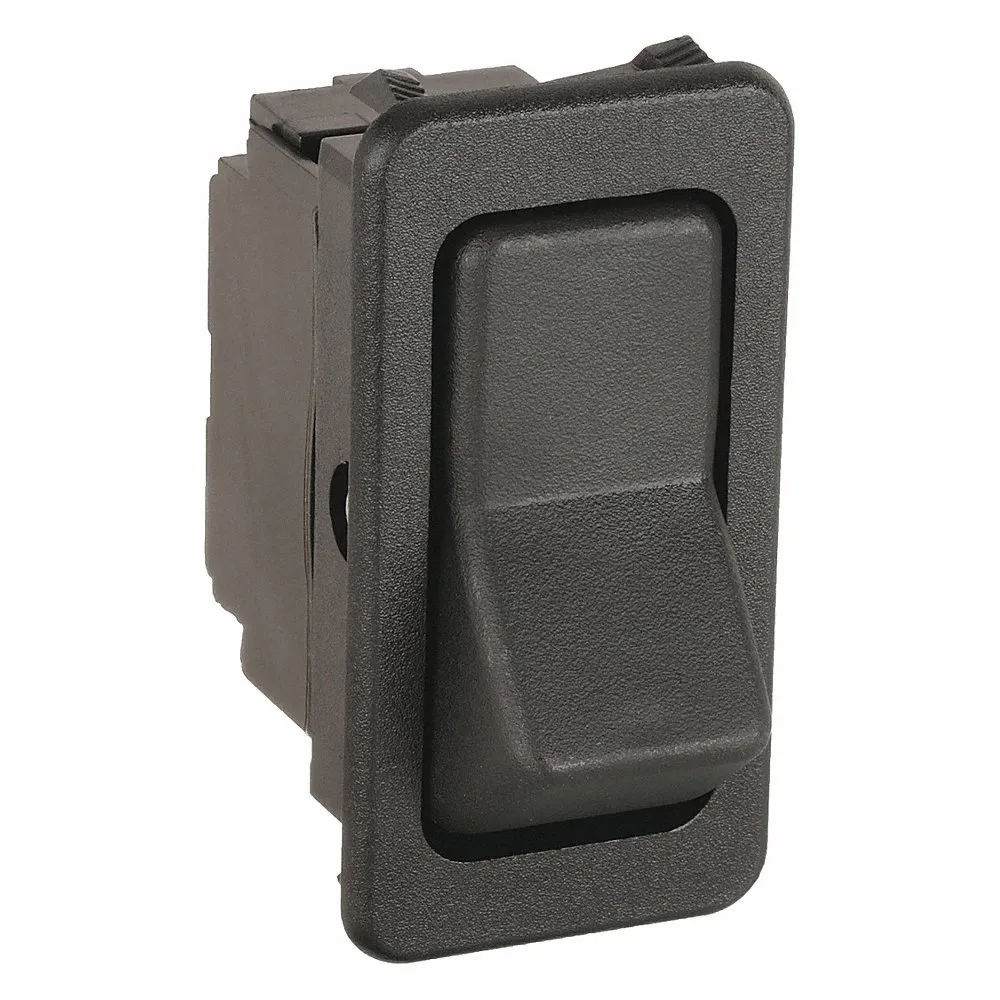

| Item | Rocker Switch |
| Mounting Hole | 0.867" x 1.734" |
| Number Of Connections | 2 |
| Special Features | Non-Illuminated |
| Ac Contact Rating | 10A @ 250V, 15A @ 125V |
| Contact Form | SPST |
| Dc Contact Rating | 15 A @ 28 V |
| Features | Matte Finish, Slow Make/Slow Break Contacts |
| Horsepower | 3/4 hp @ 250 V |
| Ip Rating | IP54 |
| Mounting Hole Length | 1.73" |
| Mounting Hole Width | 0.87" |
| Number Of Positions | 2 |
| Operator Illumination | Non Illuminated |
| Overall Depth | 2" |
| Overall Height | 1.97" |
| Overall Width | 1.02" |
| Product Type | Rocker Switch |
| Resistance Properties | Dust Resistant, Moisture Resistant |
| Series | 8004 Series |
| Standards | CRUUS, ROHS, UL E2702 |
| Switch Action | On/Off |
| Switch Color | Black |
| Terminal Connection Type | 1/4" Spade |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 4.07 |
| Ship length (cm) | 5 |
| Ship width (cm) | 2.6 |
| Country of Origin | MX |
| Product | Model | Price | |
|---|---|---|---|
 |
8004K52N1V2 | €24.51 | |
 |
8004K32N1V2 | €22.39 | |
 |
8004K28N1V2 | €14.55 | |
|
8004K26N1V2 | €16.38 | |
|
8004K45N1V2 | €23.64 | |
|
8004K34N1V2 | €19.11 | |
|
8004K54N1V2 | €28.91 |
