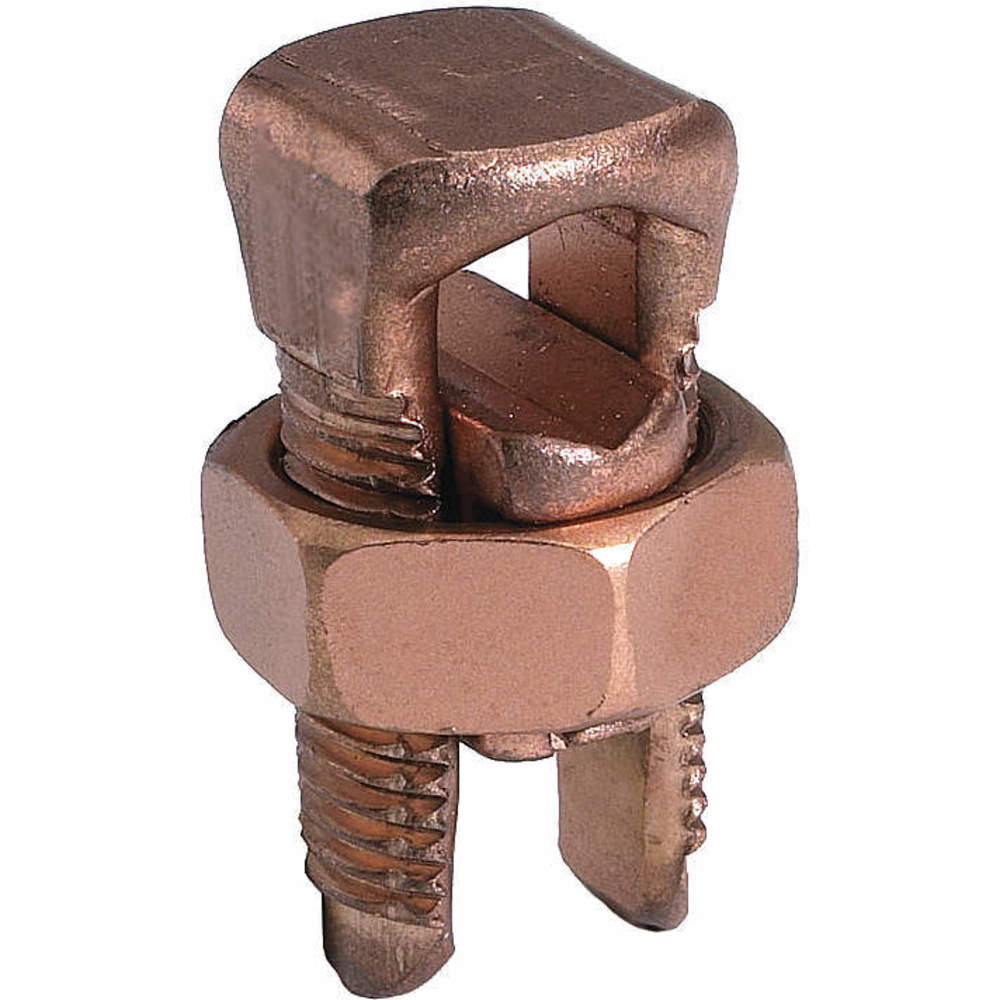

BURNDY KS90 Connector Split Bolt Cu/cu 12 Stranded
Get it by Thursday, Jun 19
€4.75 /unit
Add To Cart
Request a Quote
Payment
Get it by Thursday, Jun 19
Payment
| Item | Split Bolt Connector, Cu/Cu |
| Body Material | Copper |
| Connects | Copper To Copper Wire |
| Finish | Unplated |
| For Maximum Run Wire Size | 10 AWG |
| For Maximum Tap Wire Size | 10 AWG |
| For Minimum Run Wire Size | 12 AWG |
| For Minimum Tap Wire Size | 16 AWG |
| For Run Wire Size | 10 AWG |
| For Wire Size | 12 AWG |
| Head Style | Square Head |
| Hex Nut Size | 1/2" |
| Material | Copper Alloy |
| Min. Tap Conductor Size | 16 AWG |
| Min. Tap Conductor W/1 Max. Main (awg) | 16 AWG |
| Overall Length | 0.85" |
| Pressure Bar Material | Copper |
| Rohs Compliant | Yes |
| Width | 0.38" |
| Wire Range W/equal Main And Tap (awg) | 12 AWG to 10 AWG |
| Wire Size Range With Equal Main And Tap | 12 AWG to 10 AWG |
| Body Finish | Unplated |
| Maximum Voltage | 35000V |
| Minimum Tap Conductor W/1 Maximum Main (awg) | 16 AWG |
| Overall Width | 0.38" |
| Special Features | Compact, High Strength, High Copper Alloy SERVIT Split-Bolt Has Free-Running Threads And Easy To Grip Wrench Flats, Highly Resistant To Season Cracking And Corrosion, The SERVIT Provides Maximum Pressure And Assures A Secure Connection On All Combinations Of Run And Tap Conductors |
| Standards | CSA CERTIFIED, UL 486A, UL 486B, UL 486D |
| Torque | 80 lbs.-in. |
| Ship height (cm) | 0.97 |
| Ship length (cm) | 2.16 |
| Ship width (cm) | 0.97 |
| HS code | 8535908020 |
| Country of Origin | US |
