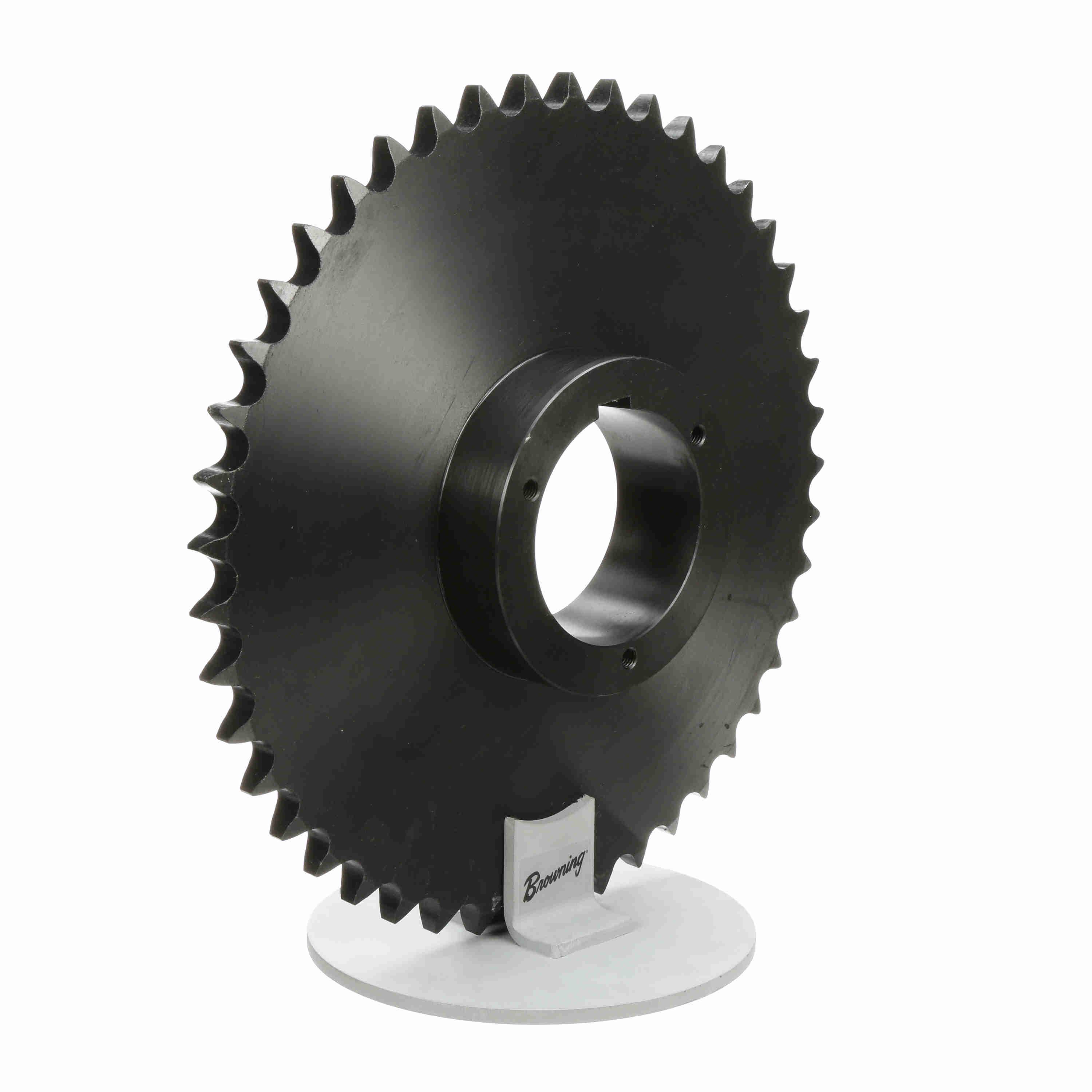

BROWNING 1172014 80R41 Roller Chain Sprocket, Bushed Bore, Steel
€732.48 /unit
Request a Quote
Payment
Payment
| Item | Transmission Chain Sprocket |
| Bushing Bore Range | 1 1/8" to 3 3/4" |
| Bushing Size | R1 |
| Chain Pitch | 1" |
| Chain Size | 80 |
| Chain Type | ANSI Roller Chain |
| Hardened Teeth | No |
| Hub Dia. | 5 3/8" |
| Hub Type | B Hub One Side |
| Keyway | Yes |
| Length Through Bore | 3.1563" |
| Material | Steel |
| Min. Plain Bore | No |
| Mounting Method | Bushed |
| No. Of Rows Of Teeth | 1 |
| No. Of Teeth | 41 |
| Other Features | Split Taper Bushing |
| Outside Dia. | 13 5/8" |
| Pitch Dia. | 13.064" |
| System Of Measurement | Imperial |
| Type | Single Strand Type 4 |
| Weight | 25.7 lbs. |
| Ship weight (kg) | 11.57 |
| Ship height (cm) | 34.62 |
| Ship width (cm) | 34.62 |
| Country of Origin | US |
