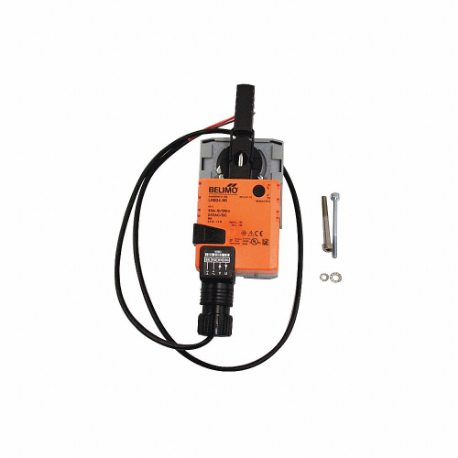

| Item | Electric Actuator |
| Ambient Temp. Range | -22°F to +122°F |
| Depth | 2.344" |
| Height | 9.406" |
| Includes | Mounting Hardware |
| Motor Direction | CW/CCW |
| Power Rating | 1.5 W |
| Signal Type | Proportional |
| Spring Return | No |
| Stroke Deg. | 0° to 90° |
| Timing | 90 sec. |
| Torque | 45 lbs.-in. |
| Voltage | 24V AC/DC |
| Width | 2.594" |
| Auxiliary Contact Form | SPDT |
| Compatible With Series | B200, B210, B220, B230, B300, B310, B320 |
| Control Signal | Floating Point, Proportional |
| Cycle Time | 90 sec. |
| Electrical Connection Type | Cable |
| Electrical Lead Length | 3 ft. |
| Housing Material | Steel |
| Nema Rating | 2 |
| Number Of Auxiliary Switches | 0 |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | -22°F |
| Overall Depth | 2 3/8" |
| Overall Height | 9 7/16" |
| Overall Width | 2 5/8" |
| Power Consumption | 3 VA |
| Product Type | Electric Ball Valve Actuator |
| Return Action | Non-Spring Return |
| Stroke Degree | 90° |
| Stroke Length | Not Rated |
| Ship weight (kg) | 0.52 |
| Ship height (cm) | 23.97 |
| Ship length (cm) | 6.03 |
| Ship width (cm) | 6.67 |
| Country of Origin | US |
