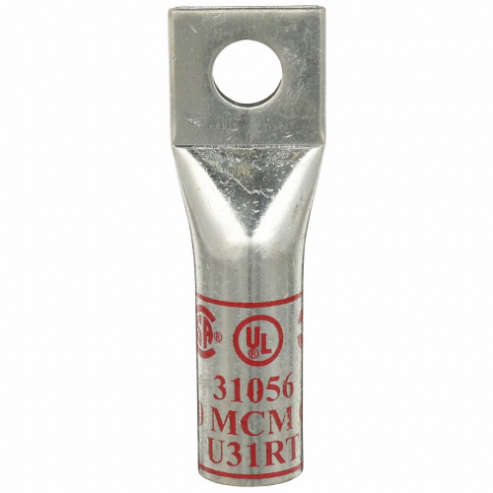

3M 31056 Copper 1-hole Long-barrel Lug, 10 Pk | AB9KUE 2DRA4

3M 7000031404 31056 One-Hole Lug Compression Connector, 350 kcmil Max Wire Size, 1/2 Inch Stud Size, 10 PK

Item: AB9KUEModel: 7000031404Cross Ref: 2DRA4 / 31056
In Stock

Get it by Thursday, Jun 19

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€388.15 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemCopper 1-Hole L-Barrel Lug
Cable Size350 kcmil
Cable Size Code350 kcmil
Color CodeRed
Connector TypeStraight Barrel
Die Code18
Hole Center To End0.531"
Length3 21/25"
MaterialCopper
Peep HoleNo
Plate MaterialTin
Stud Size1/2"
TypeStandard
Width1.27"
Barrel Id0.7"
Barrel Od22/25"
Barrel SizeLong
Barrel StyleSeamless
Connection OrientationStraight
Contact FinishTin
For Conductor MaterialCopper
For Stud Size1/2"
For Wire TypeStranded
Inspection HoleNo
Maximum Voltage35 kV AC
Maximum Wire Size350 kcmil
Number Of Holes1
Overall Length3.85"
Overall Width1.27"
Rohs CompliantYes
Seam StyleSeamless
Special FeaturesCorrosion Resistance, Good Conductivity, Reliable Performance, Secure Fit
StandardsCSA CERTIFIED, UL LISTED
Termination StyleCrimp
Tongue Length1.11"
Tongue StyleStandard
Tongue Width1.27"

Shipping Info:

Ship weight (kg) 1.21
Ship height (cm)2.54
Ship length (cm)9.78
Ship width (cm)3.23
HS code8535908040
Country of OriginCL

Product Variants

ProductModelCable SizeCable Size CodeColor CodeDie CodeHole Center To EndLengthStud SizeWidthPkg. Qty.Price
3M 31060 Copper 1-hole Long-barrel Lug, 10 Pk | AB9KUW 2DRE2 7000031444400 kcmil400 kcmilBlue190.65"4.16"1/2"1.41"10€429.19
3M 31053 Copper 1-hole Long-barrel Lug, 10 Pk | AB9KVB 2DRF2 7000031403300 kcmil300 kcmilWhite170.531"3.78"1/2"1.22"10€301.60
3M 31066 Copper 1-hole Long-barrel Lug, 10 Pk | AB9KVM 2DRH2 7000031405500 kcmil500 kcmilBrown200.66"4.5"1/2"1.53"10€468.27
3M 31067 Copper 1-hole Long-barrel Lug, 10 Pk | AB9KWK 2DRL5 7100057122500 kcmil500 kcmilBrown200.66"4.5"5/8"1.53"10€450.30
3M 31041 Copper 1-hole Long-barrel Lug, 10 Pk | AB9KWM 2DRL8 70000314003/0 AWG3/0 AWGOrange14, 1010.531"3.13"1/2"0.91"10€261.97
3M 31045 Copper 1-hole Long-barrel Lug, 10 Pk | AB9KXQ 2DRU8 70000314014/0 AWG4/0 AWGPurple150.531"3.32"1/2"1"10€270.98
3M 31049 Copper 1-hole Long-barrel Lug, 10 Pk | AB9KXU 2DRW2 7000031402250 kcmil250 kcmilYellow160.531"3.38"1/2"1.13"10€309.23
